ZPMC TB220.13.D1B-00

ZPMC TB220.13.D1B-00 gearbox Inspection and overhaul

Inspection and repair on ZPMC TB220.13.D1B-00 gearbox

  • ZPMC gearbox repair

Scope of work:

We performed an inspection and repair on a gearbox ZPMC TB220.13.D1B-00.

The conversion operations consists of:

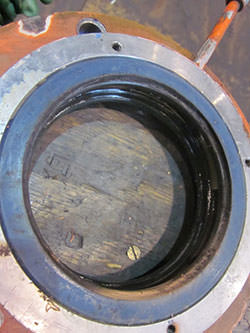

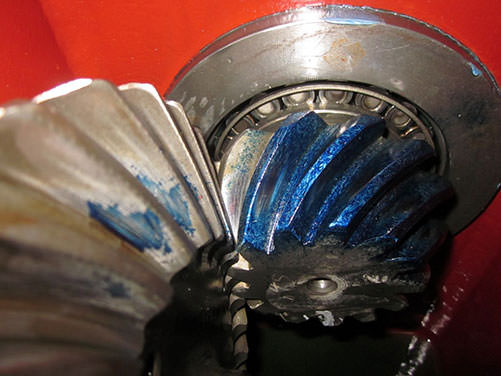

  • Disassembling, cleaning and inspection of the gearbox.
  • Performing of the repair constructions.
  • Deploying of the inspection report.
  • Stop point.
  • Re-using of the input pinion.
  • Renewing of the output shaft.
  • Renewing of diverse small items such as gaskets and bolts.
  • Renewing og all seals, bearings and innerrings.
  • Re-assembling of the gearbox.

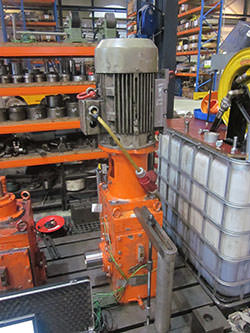

  • Performing a test run.
  • Degreasing of the gearbox and conserving on the outside in excisting colour.
  • Preparing the gearbox for shipping.



contact us

Location - date:

The Netherlands - September 2013
