WGW SC 1,5/SO

Inspection and repair project on WGW SC 1,5/SO gearbox

Inspection and repair on WGW SC 1,5/SO gearbox

  • WGW gearbox
  • SC 1,5/SO
  • Input=___ rpm / ____ KW
  • WGW gearbox repair
  • NL

Scope of work:

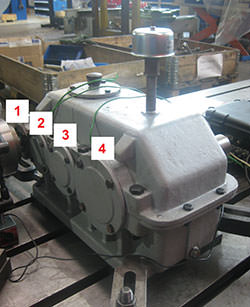

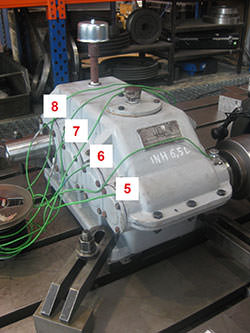

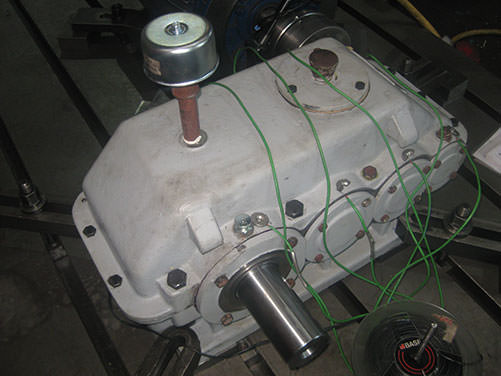

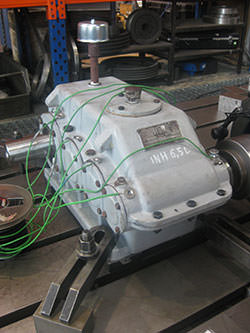

We performed an inspection and repair on a gearbox WGW SC 1,5/SO.

The conversion operations consists of:

  • Gearbox casing
  • Inside box was in poor condition, we had to scrape, to polish, to degrease and to conserve in the excisting colour.
  • Outside box was in poor condition.

  • Inside first gear set
    • The input pinion shaft is renewed excess.
    • The toothing is regrinded minimal.

  • Inside third gear set
    • The pinion shaft has been checked manually.
    • The output shaft has been renewed excess.

  • Miscellaneous
    • Seals and bearings were renewed.
    • Input labyrinthring was renewed.
    • Vent plug and grease fittings were renewed.



contact us

Location - date:

The Netherlands - January 2014
