Overhaul of gearbox SEW SSG 5

Scope of work:

We performed an inspection and repair on a gearbox SEW SSG-5.

The conversion operations consists of:

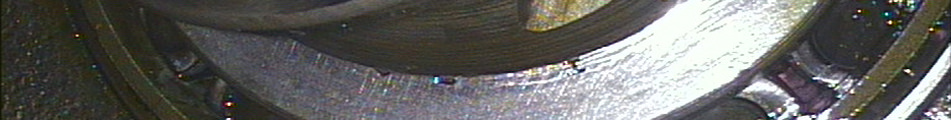

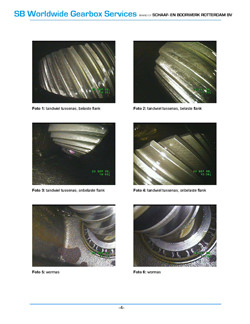

• Performing a standard overhaul your gearbox, including visual inspection on site with an endoscope through a threaded hole.


• The standard overhaul consists mainly of:
• General cleaning and disassembly of all components.

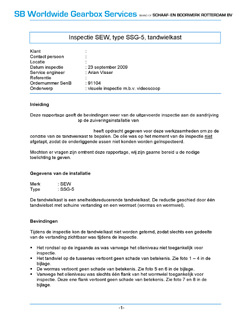

• Inspection and reporting. (stop point)
• The drawing up of the entire inside, including geometry of the
teeth.
• Assembly and testing.


• Turnaround gearbox overhaul:
• The inspection will be within 3 days after delivery gearbox
ready.
• The time required by us to carry out revision work will be
reported in inspection report aswell as associated costs
for revision.


• Refurbishment works and supplies including:
• The information you provide to gearbox completely dismantle and
cleaning.
• Inspecting the components comprising:


• Cabinet House:
- The visual check of the closet at home cracks, where possible.
- Checking the preservation of visual internal and external.
- Checking the drilling damage and sizes.


• Inside:
- Checking condition of the teeth of all the gearing.
- Checking the bearings for damage phenomena.
- The check images and flank wear twists of all gearing.
- Checking the Asmat t.p.v. the bearings, oil seals, gears and
links to dimensions and lesions.

• The renewal of the bearings and seals, supply SB Worldwide
• Update of various consumables like gaskets, mountings,
etc, supply SB Worldwide
• The refit of the gearbox.
• If necessary, machining the surfaces of the bearing covers
to get the correct axial bearing clearances.
• Monitoring and recording of images and flank wear twists in the
inspection.
• Monitoring and recording of the axial clearances in the
inspection.
• Bench test preparations, gear preparation, fill with oil and no-
load test for 4 hours, at which this decline will be presented to a
representative Sitech Manufacturing Services.
• Gearbox ready for shipment.
• The delivery within 2 weeks after sending a complete overhaul
file containing the report form, trial protocol and turn drawings
(DWG) of the inside.
