Inspection and repair on ROSSI MRIV-250U02A gearbox
Inspection and repair on ROSSI MRIV-250U02A gearbox

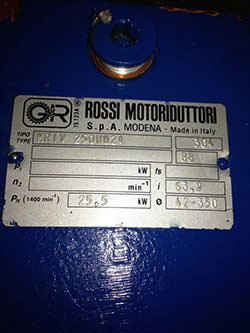

- ROSSI gearbox
- MRIV-250U02A
- Input=___ rpm / ____ KW
Scope of work:

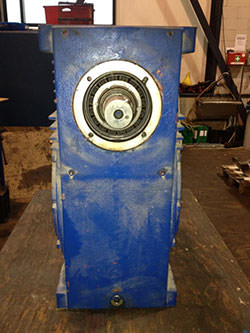

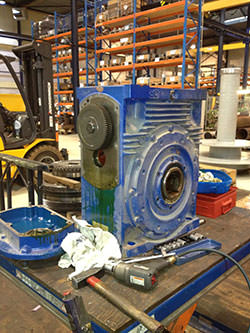

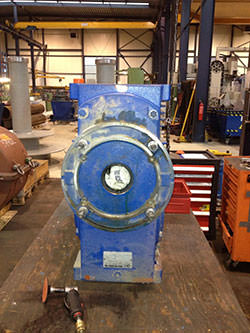

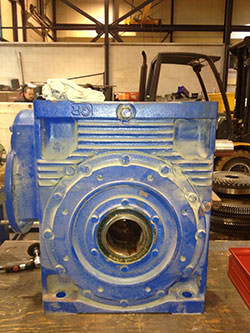

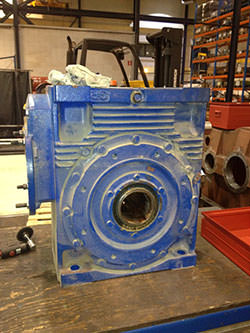

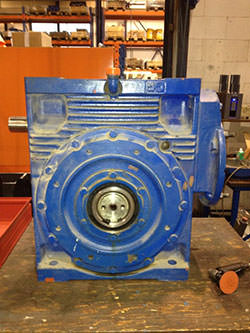

We performed an inspection and repair on a gearbox ROSSI MRIV-250U02A.
The conversion operations consists of:
- Revision construction and supply comprehensive:

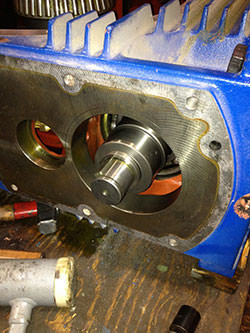

- Disassembling and cleaning of the gearbox.

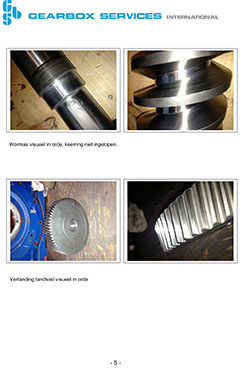

- Inspection of all parts of the gearbox:

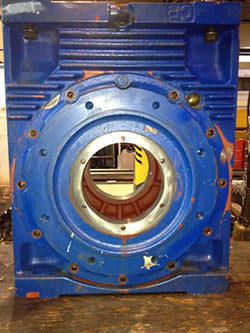

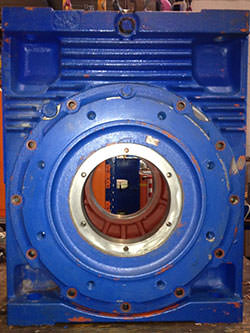

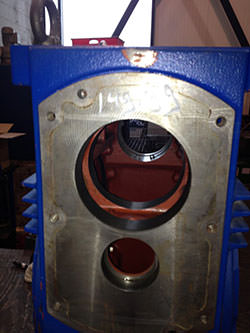

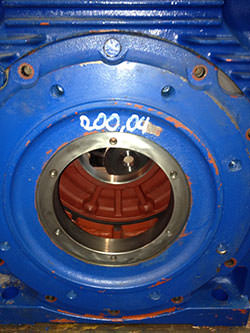

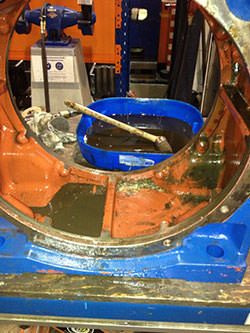

- Gearbox casing:

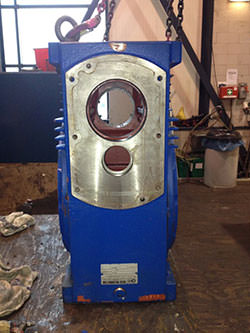

- A visual inspection of the gearbox casing for bursts.
- A visual inspection of the conservation on the inside and the outside.

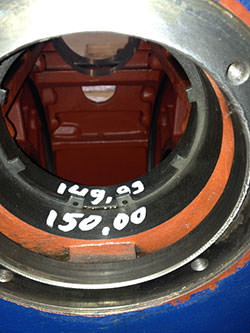

- A visual inspection of the holes for damages and dimensions.
- A visual inspection of the flatness of the devisionplanes.

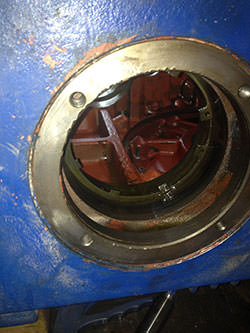

- Inside:

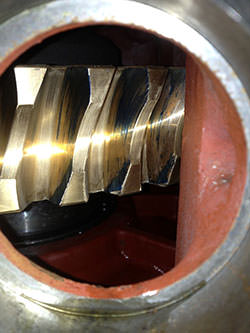

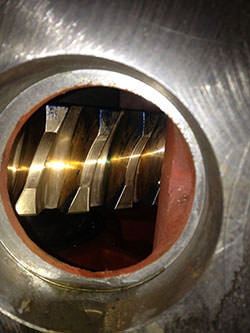

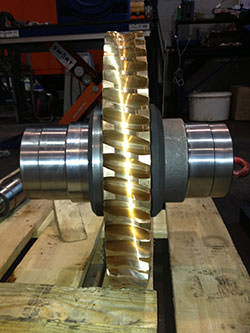

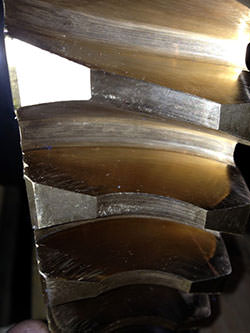

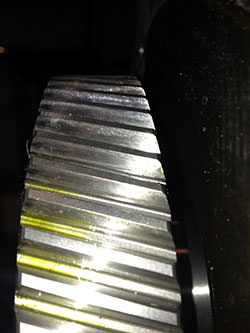

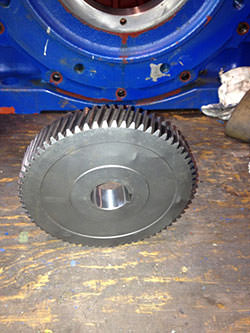

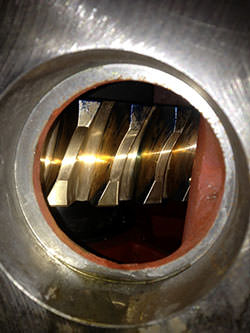

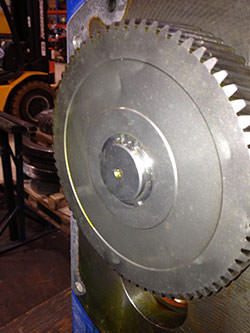

- Controlling of the condition of the serrations of all gearings.

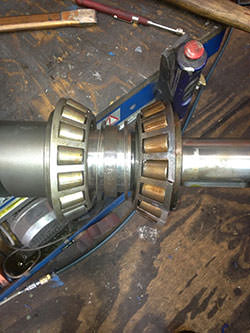

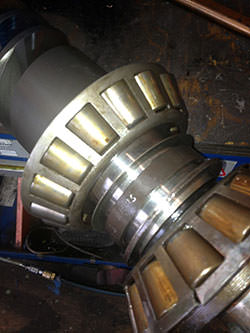

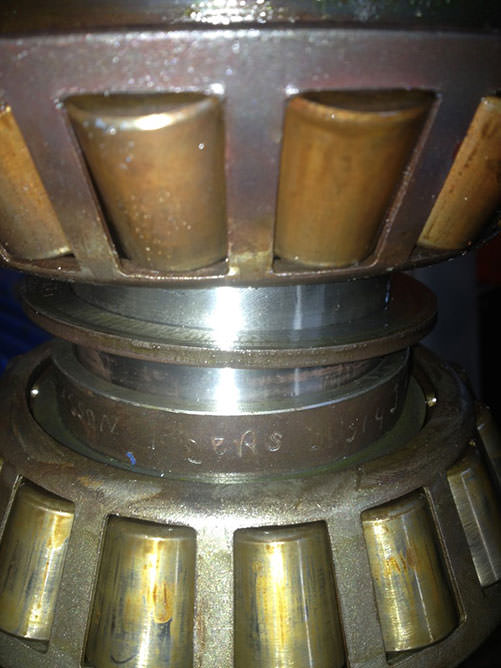

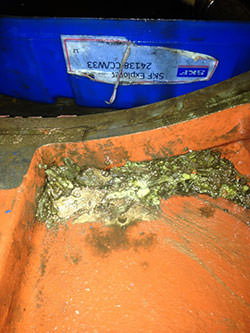

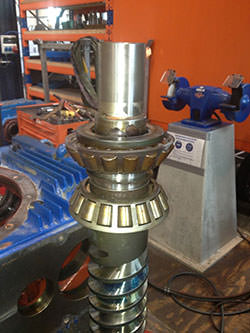

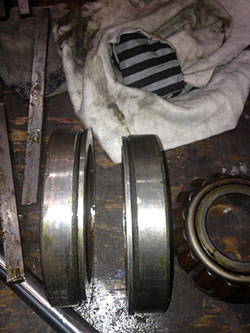

- Controlling of the bearings for damages.
- Controlling of contact patterns and back lashes of al gearings.

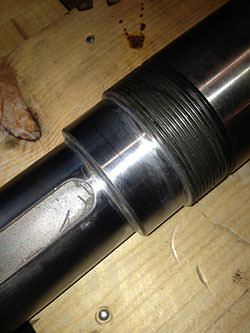

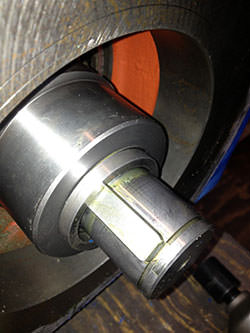

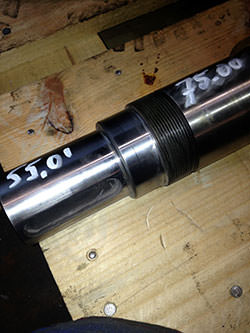

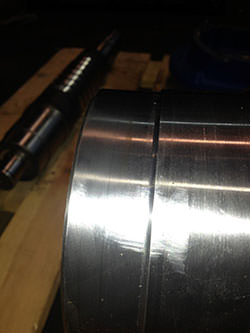

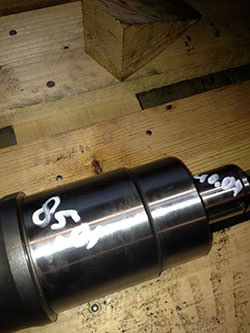

- Controlling of the shaftsizes t.p.n. the bearings, oilcatchers and couplings for dimensions and damages.

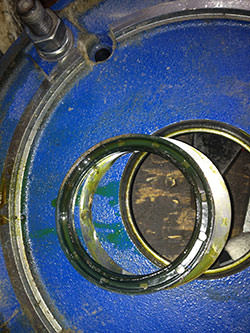

- Renewing of the seals and bearings.

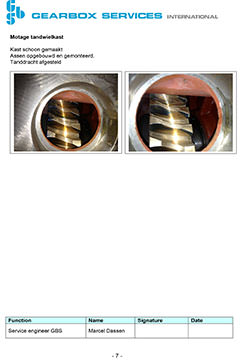

- Re-assembling of the gearbox.
- Preparing the gearbox for shipping.

Location - date:
Belgium - November 2013
