On-site Inspection and repair on PHB 3-SZ-500-So gearbox

Scope of work:

We performed an inspection and repair on a gearbox PHB 3-SZ-500-So.

The conversion operations consists of:

• Revisionconstruction and supply comprehensive:

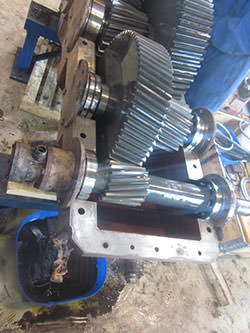

• Disassembling and cleaning of the gearbox.
• Inspection of all parts of the gearbox:


• Gearbox casing:
• A visual inspection of the gearbox casing for bursts.
• A visual inspection of the conservation on the inside and the outside.
• A visual inspection of the holes for damages and dimensions.
• A visual inspection of the flatness of the devisionplanes.


• Inside:

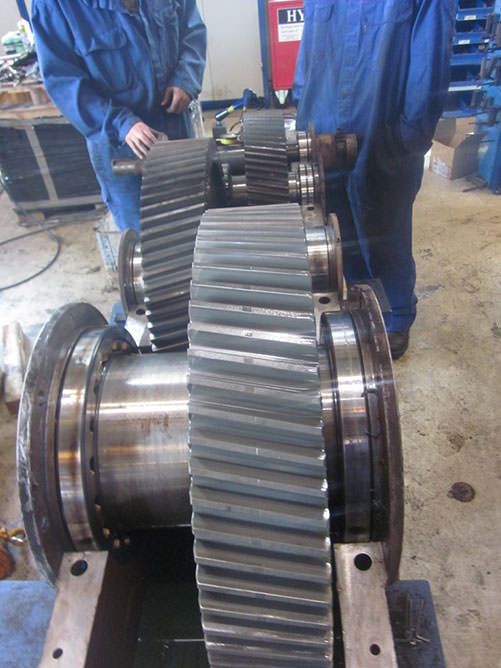

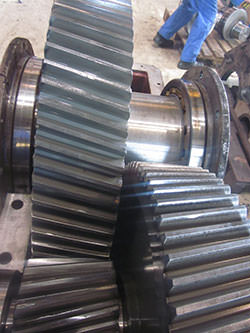

• Controlling of the condition of the serrations of all gearings.

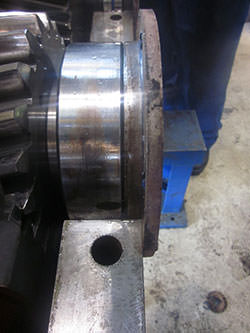

• Controlling of the bearings for damages.

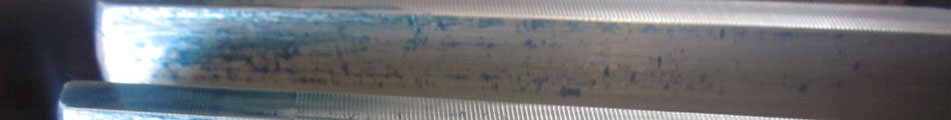

• Controlling of contact patterns and back lashes of all gearings.
• Controlling of the shaftsizes t.p.n. the bearings, oilcatchers and couplings for dimensions and damages.


• Hydraulics:
• Disassembling, cleaning and inspection of the piping, the oilpump and other parts.
• Scavenging of the piping.
