Inspection and repair on MIELE FAKR1-155-S gearbox

Scope of work:

We performed an inspection and repair on a gearbox MIELE FAKR1-155-S.

The conversion operations consists of:

• Disassembling and cleaning of the gearbox.
• Inspection of the parts consisting of the following instruction:

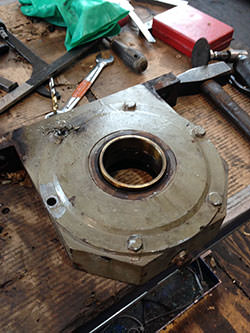

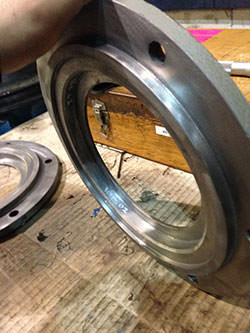

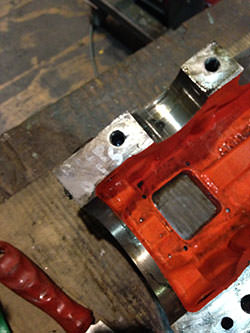

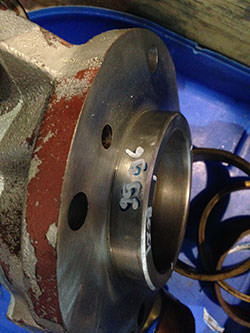

• Gearbox casing
• Outside box was in unaccepted condition, we had to scrape, to polish, to    degrease and to conserve in the excisting colour.
• Inside box was in accepted condition.

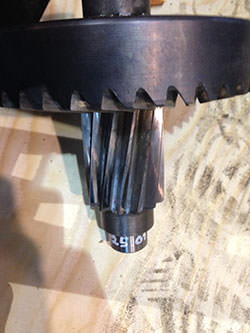

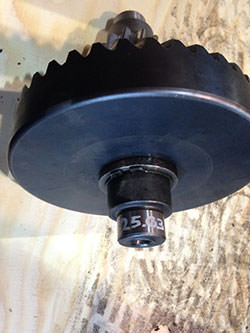

• Inside first gear set
• In way of the oil seal, rough-turn at seal location, add chrome
  to surface and fine-turn.

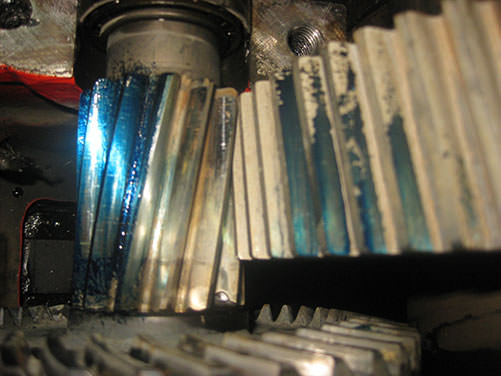

• In way of the toothing performed light scuffing.

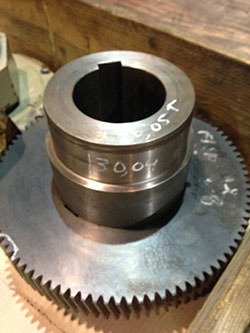

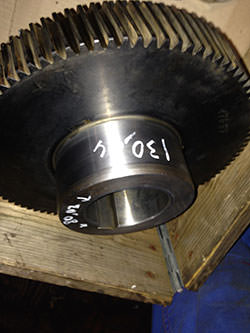

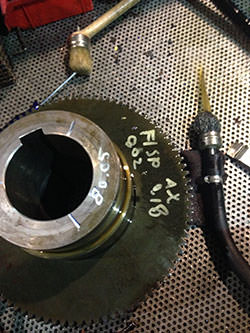

• Inside second gear set

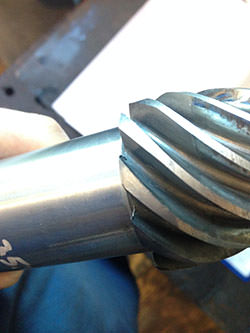

• There were damages in way of the gearings.
• In way of the toothing performed light scuffing.

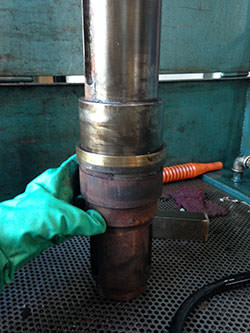

• Wheel drive shaft
• Heavy rust formation in the inside screw thread.
• Renewing of the wheel drive shaft axcess included keys.

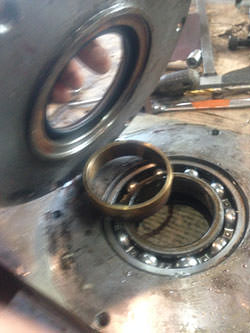

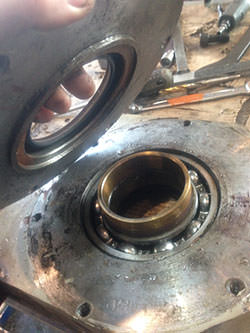

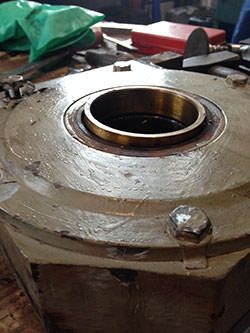

• Renewing of bronze bushes.
• The driving claw performed light damage an two bolts were demolished.


• Miscellaneous

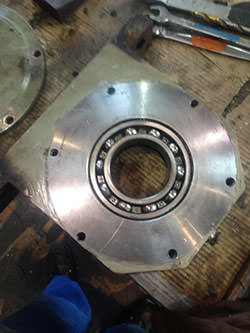

• Seals and bearings were renewed.
• Couplingcushions were renewed.

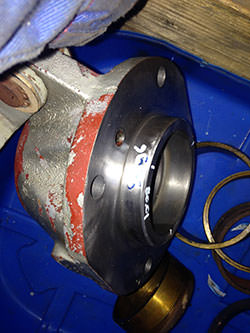

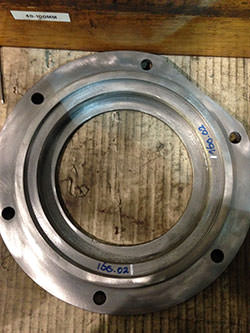

• The input bearing cap and holder were renewed.
• Renewing of cell filler plug and oil level hole.



Preparing for test run, deploying of the gearbox, filling with oil and a test run for four hours.

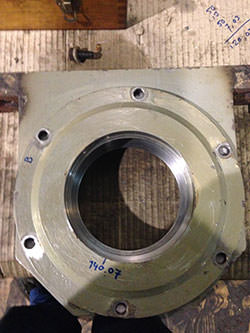

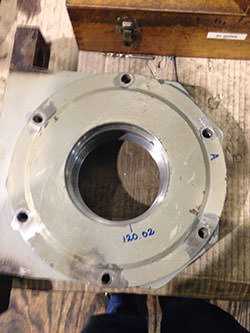

Degreasing on the outside and conserving in a DTM-coating.
Preparing of the gearbox for shipping.
