LIPS FT09

Inspection and repair of LIPS FT09 gearbox

Inspection and repair of LIPS FT09 gearbox

  • LIPS gearbox
  • FT09
  • Input=___ rpm / ____ KW
  • LIGHTNIN gearbox repair
  • NL

Scope of work:

We performed an inspection and repair on a gearbox LIPS FT09.

The conversion operations consists of:

  • Inspection of the disassembled bow thruster gearbox.
  • Deploying of the inspection report.
  • Stop point.


  • The conversion operations for additional work:
  • Renewing of the spur bevel gearset.
  • Renewing of the output shaft.
  • Renewing of the input bearing bush.
  • Renewing of the output bearing bush.
  • Renewing of the joint bush.
  • Renewing of the seals and the bearings.
  • Rebushing of the boreholes of the input shaft.
  • Conserving of the out- and inside box and on the outside in a 5 coating system.
  • Re-assembling of the gearbox.
  • Preparing the gearbox for shipping.

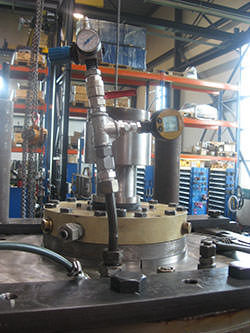

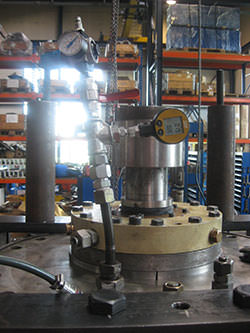

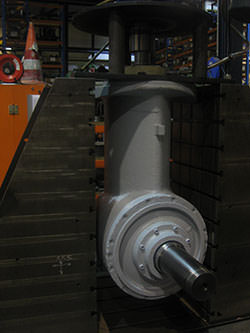

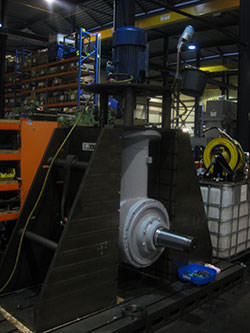

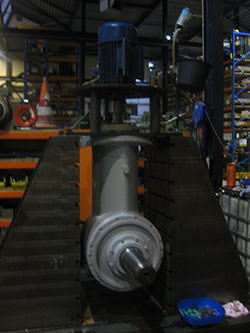

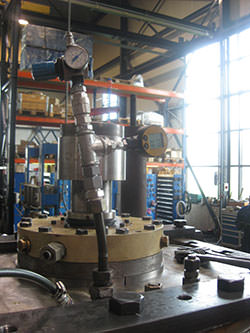

  • Performing a test run.



contact us

Location - date:

The Netherlands - January 2014

Market

See overview Dredging market
dredging industry

Other types of same brand:

LIPS

LIPS
Menu:
LIPS FT09
Service on a LIPS gearbox

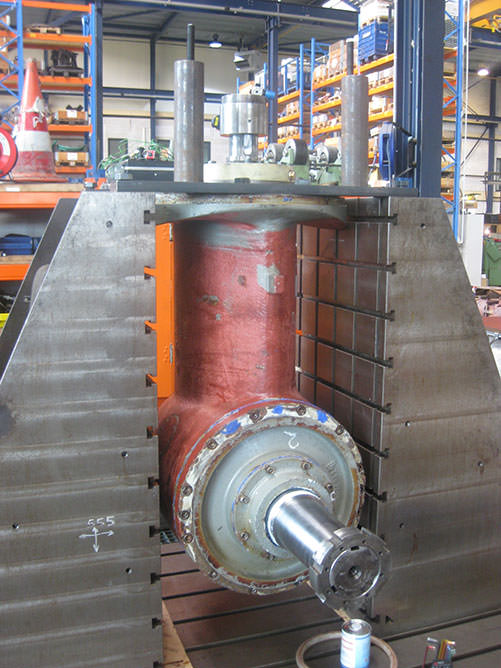

Disassembling of the bow thruster
Inspection of a LIPS gearbox
Repair of a LIPS gearbox
Service on a LIPS gearbox
Spares for LIPS gearbox

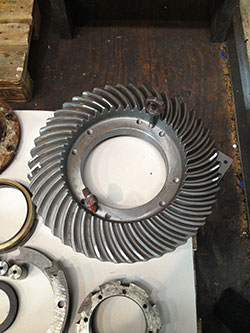

Renewing of the spur bevel gearset
Ispezione di un riduttore LIPS
Riparazione di un cambio LIPS
Service su un cambio LIPS
Parti di ricambio per la scatola del cambio LIPSe

Reparatur einer LIPS Getriebe

Performing an inspection of the disassembled bow thruster gearbox

Service auf einem LIPS Getriebe
Ersatzteile für LIPS Getriebe
Renewing of the bearing bushes
التفتيش على علبة التروس LIPS

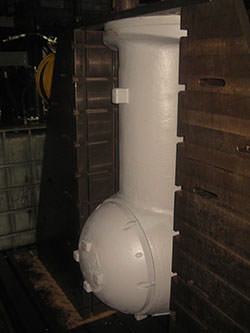

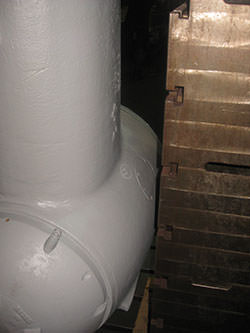

Conserving of the outside box
الخدمة على علبة التروس LIPS
قطع الغيار لعلبة التروس LIPS

Reparação de uma caixa de câmbio LIPSx
Serviço de uma caixa de velocidades LIPS
Peças de reposição para caixa de velocidades LIPSx
Inspeksie van 'n LIPS ratkas
Herstel van 'n LIPS ratkas

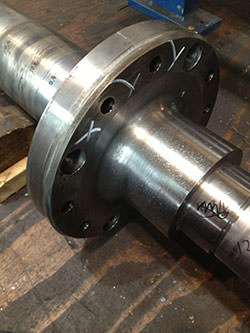

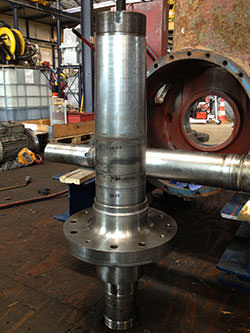

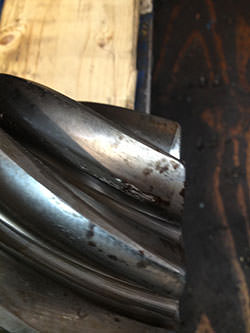

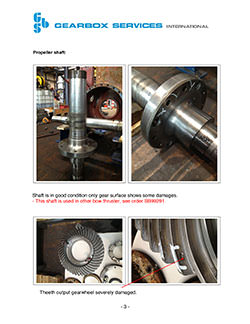

The shaft was in good condition only the gear showed some damages
Spares vir 'n LIPS ratkas

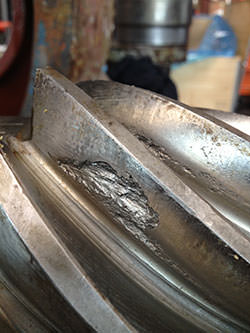

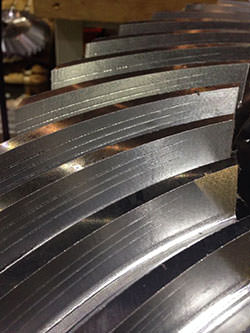

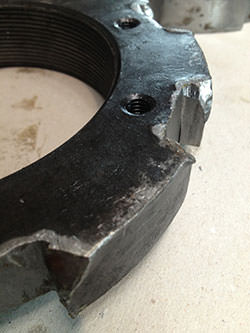

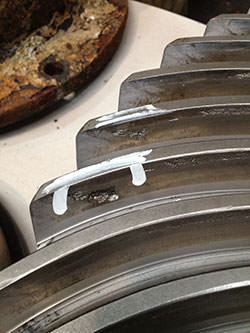

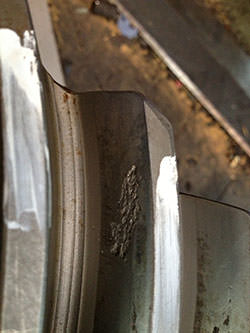

The teeth of the output gearwheel was severely damaged
Réparation d'une boîte de vitesses LIPS
Service sur une boîte de vitesses LIPS
Pièces de rechange pour boîte de vitesses LIPS
Επιθεώρηση του κιβωτίου ταχυτήτων LIPS
Επισκευή του κιβωτίου ταχυτήτων LIPSD

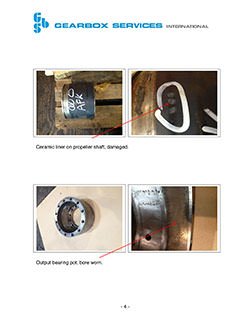

The ceramic liner on the propeller shaft was damaged
Ανταλλακτικά για LIPS κιβώτιο ταχυτήτων

Reparasjon av en LIPS girkasse
Tjenesten på en LIPS girkasse

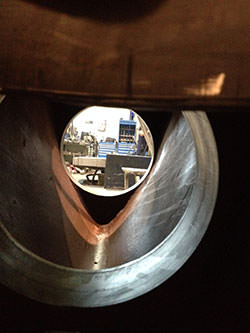

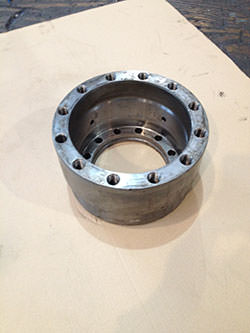

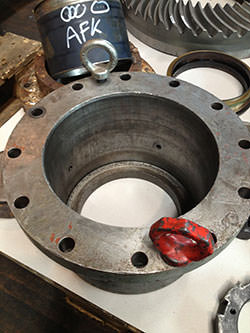

The input bearing pot, the inside bore dimensions are tapered
Inspektion av en LIPS växellåda

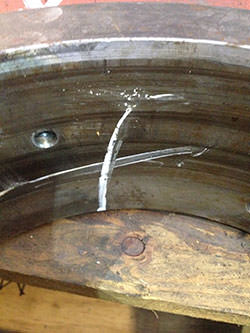

The output end cover. The bore of the output bearing was worn
Service på en LIPS växellåda
Reservdelar för LIPS växellåda

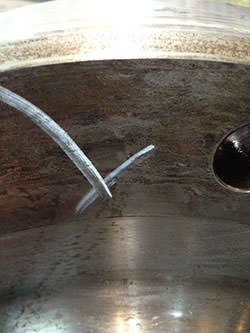

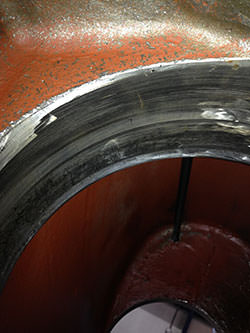

The bore of the input shaft spherical bearing at pinion side was worn
Reparatie van een LIPS tandwielkast
Service op een LIPS tandwielkast

التفتيش على علبة التروس LIPS
إصلاح علبة التروس LIPS

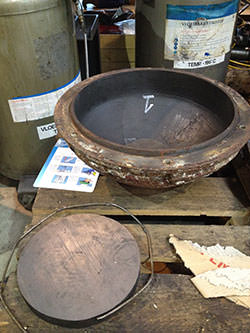

The output bearing pot, the bore was worn
قطع الغيار لعلبة التروس LIPS

La inspección de una caja de cambios LIPS
Reparación de una caja de cambios LIPS
El servicio en una caja de cambios LIPS
Repuestos para caja de cambios LIPS

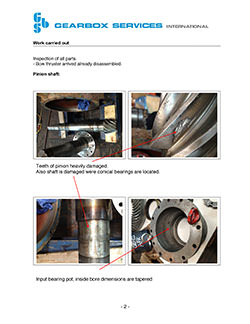

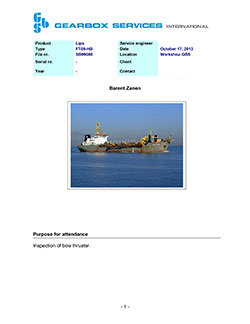

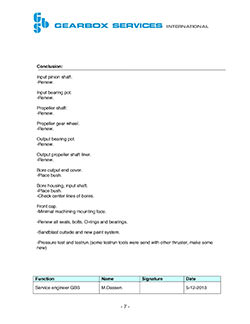

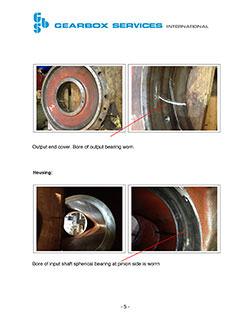

This report included an inspection of the bow thruster gearbox
