Inspection and repair of HANSEN RNG24-S gearbox

Scope of work:

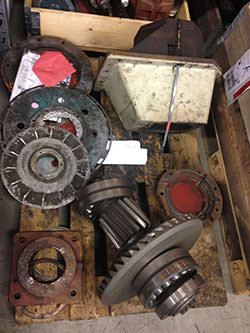

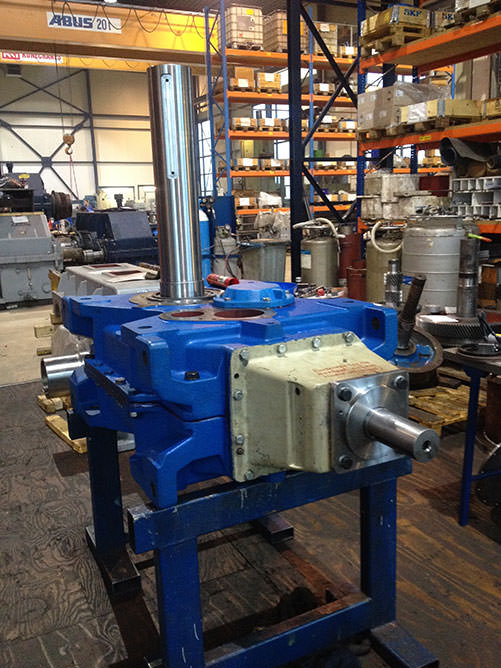

We performed inspection and repair on a gearbox HANSEN RNG24-S.

The conversion operation consists of:

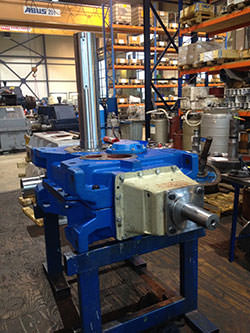

• Gearbox casing

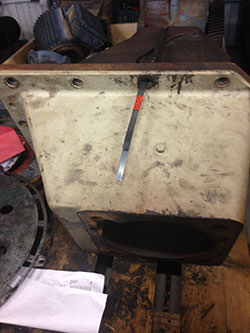

• Outside box was in poor condition, we had to scrape, to polish, to degrease and to conserve in the excisting colour.

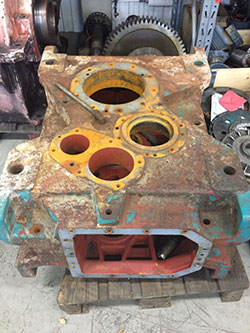

• Inside box was in poor condition.

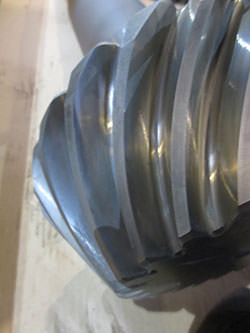

• Inside first gear set
• In way of the oil seal, rough-turn at seal location, add chrome to surface and fine-turn.

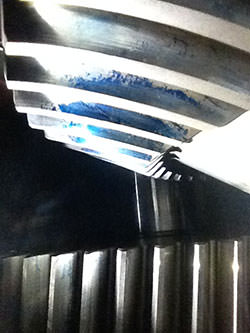

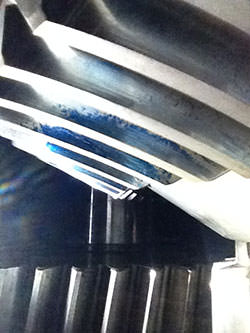

• The toothing is regrinded minimal.

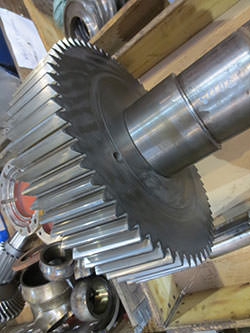

• Inside second gear set

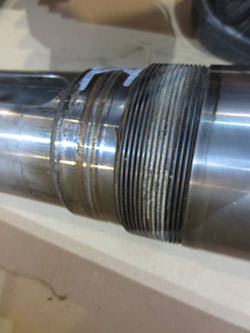

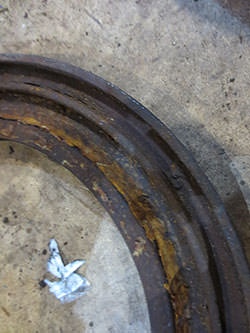

• There was scuffing in way of the oil seal.

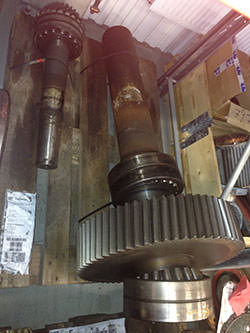

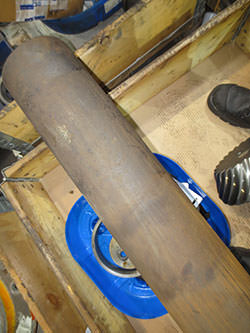

• The output shaft has been renewed.


• Miscellaneous
• Seals and bearings were renewed.

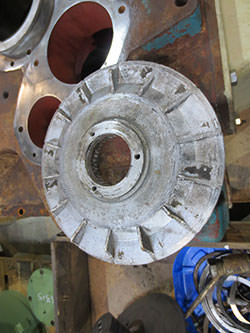

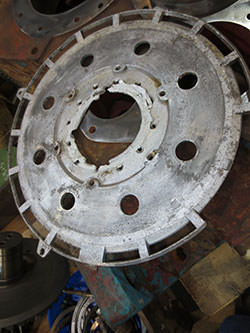

• The ventilator and the disc coupling to support impeller were renewed.
• The input bearing cap and holder were renewed.
