Inspection and repair of FLENDER ZF68-K2-(100) gearbox

Scope of work:

We performed an inspection and revision on gearbox FLENDER ZF68-K2-(100).

The conversion operations consists of:

• Revisionconstruction and supply comprehensive:

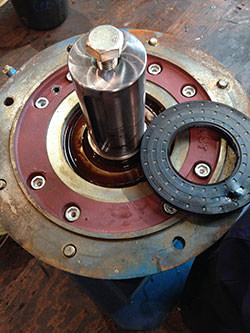

• Disassembling and cleaning of the gearbox on location.
• Inspection of all parts of the gearbox:

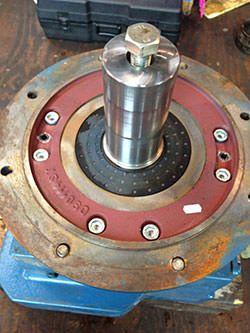

• Gearbox casing:
• A visual inspection of the gearbox casing for bursts.
• A visual inspection of the conservation on the inside and the outside.
• A visual inspection of the holes for damages and dimensions.
• A visual inspection of the flatness of the devisionplanes.


• Inside:

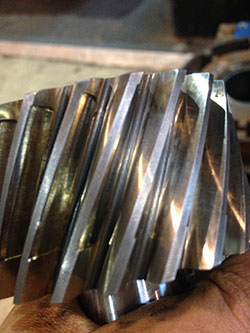

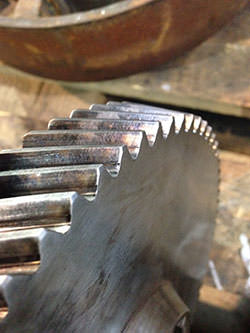

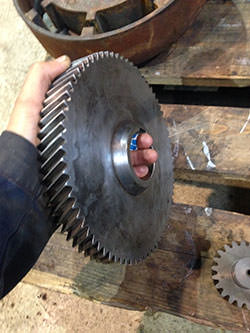

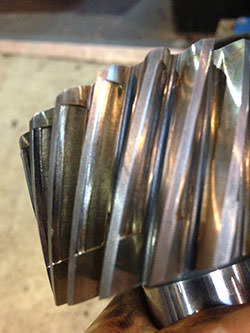

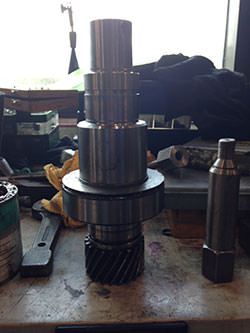

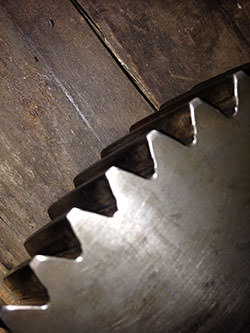

• Controlling of the condition of the serrations of all gearings.

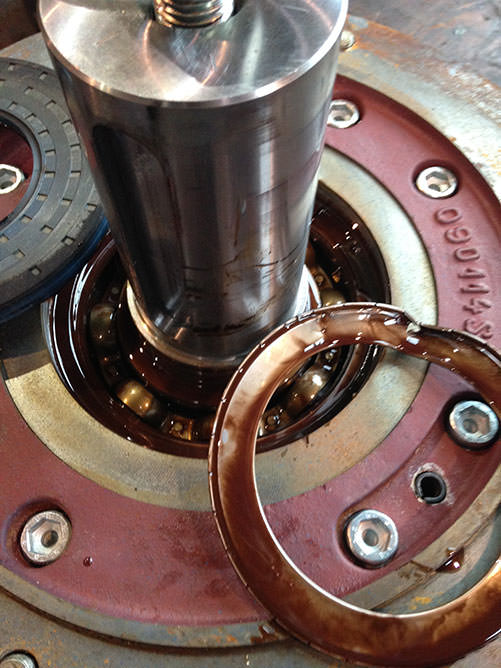

• Controlling of the bearings for damages.
• Controlling of contact patterns and back lashes of al gearings.

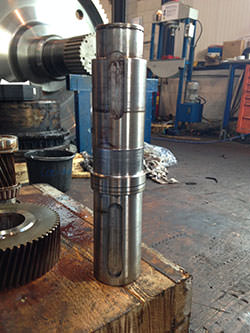

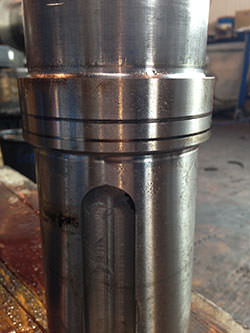

• Controlling of the shaftsizes t.p.n. the bearings, oilcatchers and couplings for dimensions and damages.


• The conversion operations consists of:
• Renewing of all seals, bearings and innerrings.
• Renewing of diverse small items like gaskets and bolts.
• Re-assembling of the gearbox.
• Performing of the repair constructions.

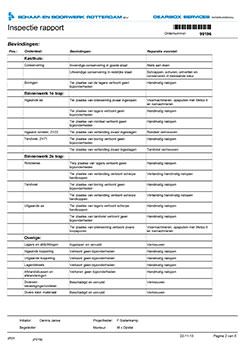

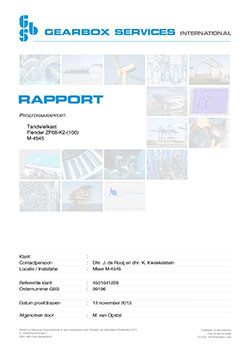

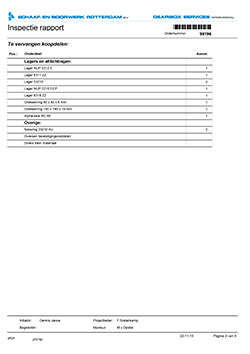

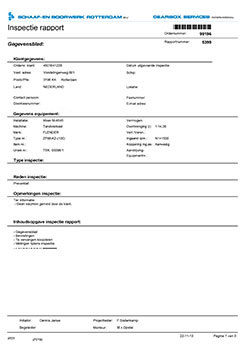

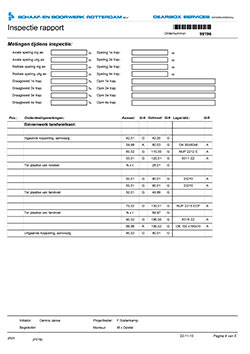

• Deploying of the inspection report.

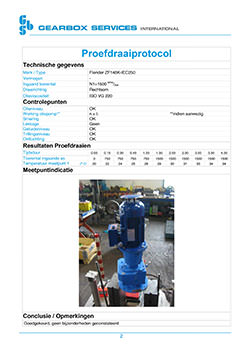

• Performing a test run.
• Degreasing of the gearbox and conserving on the outside in one coating.
• Preparing the gearbox for shipping.
• Assembling and aligning of the gearbox on location.
