Inspection and repair service of FLENDER KDA 320 gearbox

Scope of work:

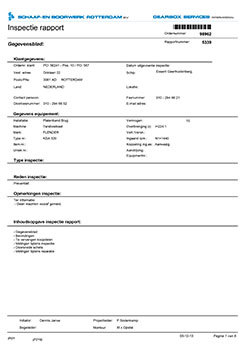

We performed an inspection and revision on gearbox of FLENDER KDA 320.

The conversion operations consists of:

• Revision construction and supply comprehensive:
• Disassembling and cleaning of the gearbox.

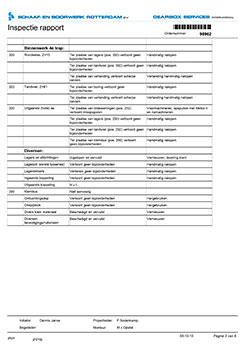

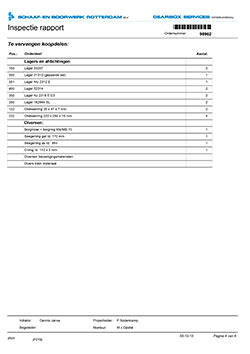

• Inspection of all parts of the gearbox:

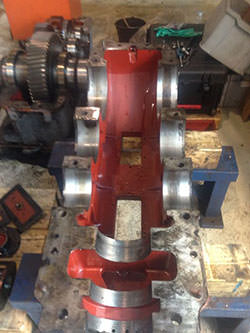

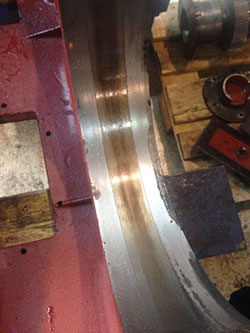

• Gearbox casing:
• A visual inspection of the gearbox casing for bursts.
• A visual inspection of the conservation on the inside and the outside.
• Controlling of the drillings for damages and dimensions.
• controlling for the flatness of the contact patterns

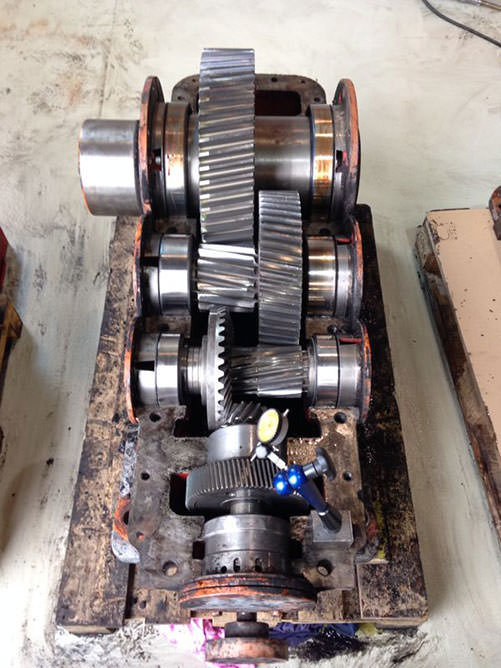

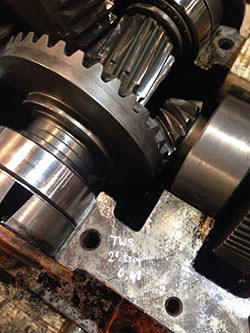

• Inside of the box:

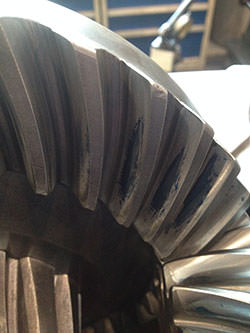

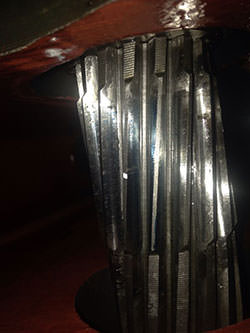

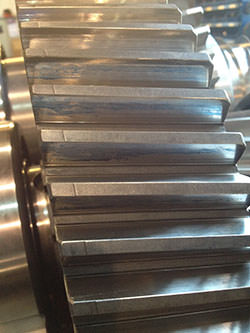

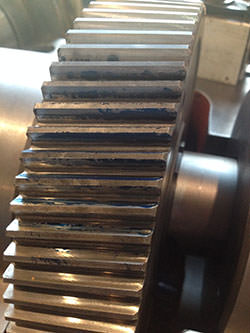

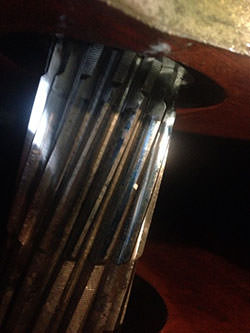

• Controlling of the condition of the serrations of all gearings.

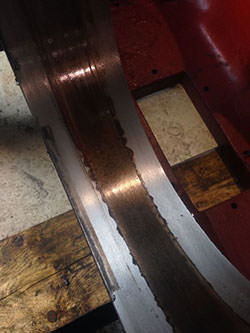

• Controlling of the bearings for damages.

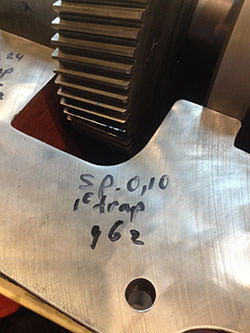

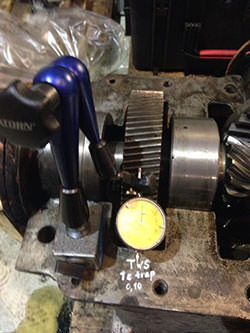

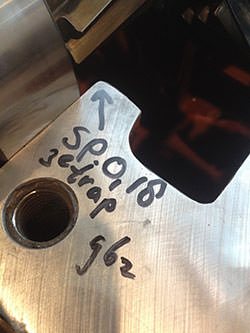

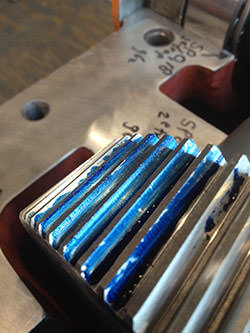

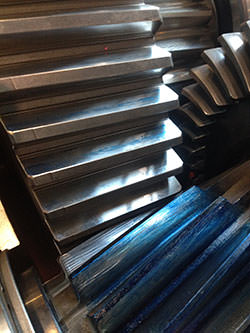

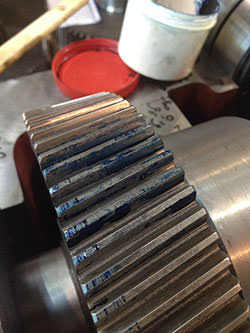

• Controlling for the flatness of the contact patterns and the flank backlashes of all gearings.

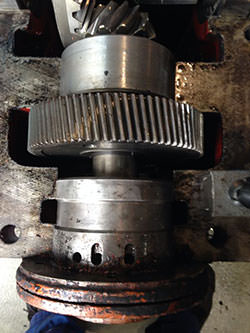

• Controlling of the shaftsizes in way of the bearings, oilseals and couplings for dimensions and damages.
• Re-assembling of the gearbox.

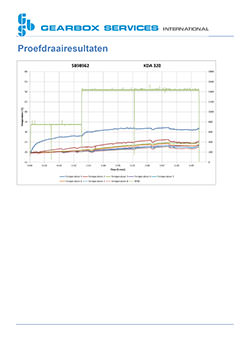

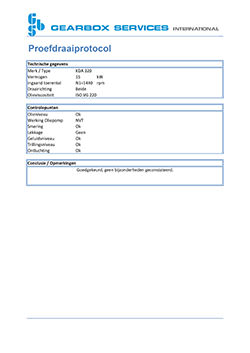

• Preparing the test run of the gaerbox.
• Degreasing of the gearbox and conserving the outside box of one coating.
• Preparing the gearbox for shipping.
