FLENDER KBH 400/S/So

FLENDER KBH 400/S/So Inspection and repair

Inspection and repair of FLENDER KBH 400/S/So gearbox

  • Flender gearbox
  • KBH 400/S/So
  • Input=___ rpm / ____ KW
  • FLENDER gearboxes Repair
  • NL

Scope of work:

We performed an inspection and revision on gearbox of FLENDER KBH 400/S/So.

The conversion operations consists of:

  • Disassembling, cleaning and inspection of the gearbox.
  • Performing of the repair constructions.
  • Deploying of the inspection report.
  • Stop point.
  • Preparing of a test run.


  • Gearbox
    • Filling of the top cover with liquid oil.
    • Renewing of the output hollow shaft excess.
    • Renewing of diverse small items such as gaskets and bolts.
    • Renewing of the bronze bush.
    • Renewing of the drain cock.
    • Renewing of all seals, bearings and inner rings.
    • Renewing of oil level gage and cell filler plug.
    • Renewing of the drain cock.
    • Renewing of the coupling E-motor.
    • Re-assembling of the gearbox.
    • Performing a test run.
    • Degreasing of the gearbox and conserving the outside in three coating.
    • Preparing the gearbox for shipping.


  • Swinge
    • Removing of all protrusive parts manually.
    • Renewing of the base plate.
    • Renewing of hinge bridge and rubber elements.
    • Renewing of the fulcrumpin.
    • Renewing of diverse small items.



contact us

Location - date:

The Netherlands - February 2013

Market

See overview Bulk & Container Handling market
bulk container industry

Other types of same brand:

FLENDER

FLENDER
Menu:
FLENDER KBH 400/S/So
Inspection of a FLENDER gearbox

Disassembling of the gearbox
Repair of a FLENDER gearbox
Service on a FLENDER gearbox

Ispezione di un riduttore FLENDER

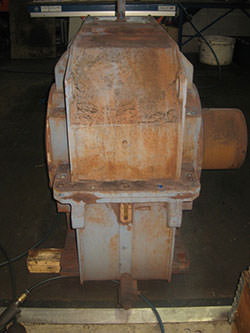

The outside box was in unaccepted condition
Service su un cambio FLENDER
Spares for FLENDER gearboxParti di ricambio per la scatola del cambio FLENDERe
Inspektion eines FLENDER Getriebe
Reparatur einer FLENDER Getriebe

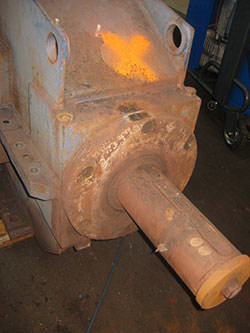

Showed heavy rust formation
Ersatzteile für FLENDER Getriebe
التفتيش على علبة التروس FLENDER
إصلاح علبة التروس FLENDER
الخدمة على علبة التروس FLENDER


Renewing of the bronze bush and performing of an inspection of the gearbox Flender

Reparación de una caja de cambios FLENDER
El servicio en una caja de cambios FLENDER

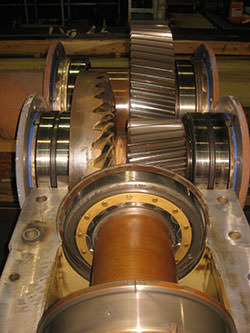

The inside box
Inspeção de uma caixa FLENDER
Controlling of the input coupling
Serviço de uma caixa de velocidades FLENDER
Peças de reposição para caixa de velocidades FLENDERx
Инспекция FLENDER коробкой передач
Ремонт коробки передач FLENDER

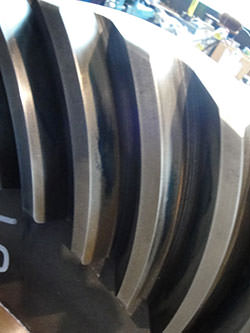

The gearwheel showed light scuffing in way of the serrations
Запчасти для FLENDER коробкой передач
Inspeksie van 'n FLENDER ratkas
Herstel van 'n FLENDER ratkas
Herstel van 'n FLENDER ratkas
Renewing of the output shaft excess
Inspeksie van 'n FLENDER ratkas
Herstel van 'n FLENDER ratkas
Renewing of the bearing spacer
Herstel van 'n FLENDER ratkas
Inspeksie van 'n FLENDER ratkas
Controlling of the dimensions
Herstel van 'n FLENDER ratkas
Herstel van 'n FLENDER ratkas

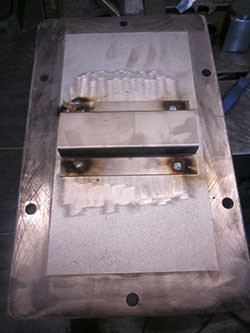

Correcting of the fundation plate machinal and conserving in one coating
