Inspection and repair service of CONRAD STORK RB-450H/3

Scope of work:

We performed an inspection and repair on a gearbox CONRAD STORK RB-450H/3.

The conversion operations consists of:

• The follow instructions were produced at the gearbox:
• Disassemling and cleaning of the gearbox.
• Inspection of the parts consisting of the following instruction:.

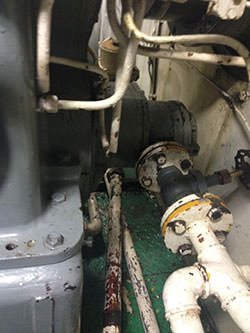

• Gearbox casing (on board):
• A visual controlling of the gearbox for bursts, where possible.
• A visual controlling of the inside and the outside of the preservation.
• Controlling of the holes for damages and sizings.

• Inside (service shop):

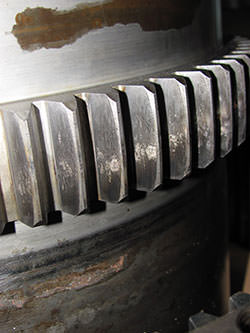

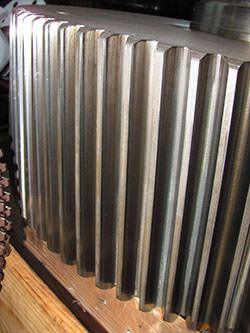

• Controlling the condition of the toothing of the gearings.

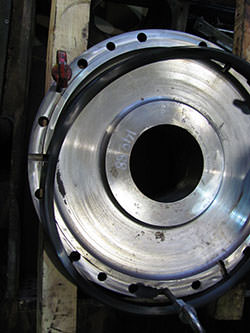

• Controlling of the bearings for damages.
• Controlling of the contact patterns and back lashes of all gearings.

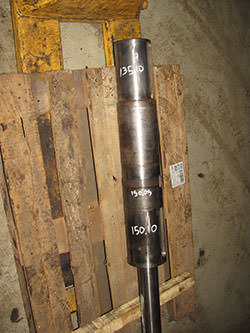

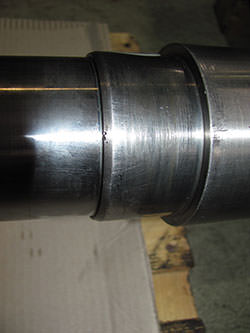

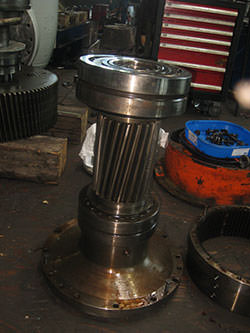

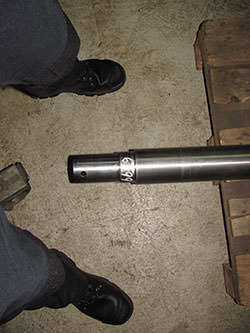

• Controlling of the axis sizes in way of the bearings of oil seal rings and couplings for measurements and damages.
• Controlling of the gearing for bursts by means of magnafluxing.
• Renewing of all seals and bearings.

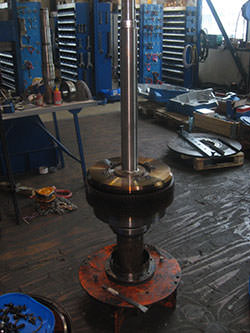

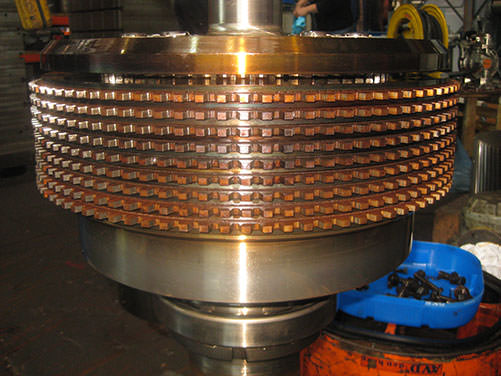

• Controlling the condition of the complete friction with the aid of plate coupling.

• Preparing for test run of the gearbox.
• Degreasing and conserving the gearbox in two coatings after the gearbox is assembled.
