CONRAD STORK inspection

Inspection and repair of CONRAD STORK Ra-450-3S

Inspection and repair of CONRAD STORK Ra-450-3S gearbox

  • CONRAD STORK gearbox
  • Ra-450-3S
  • Input=___ rpm / ____ KW
  • BRAND gearbox repair
  • netherlands

Scope of work:

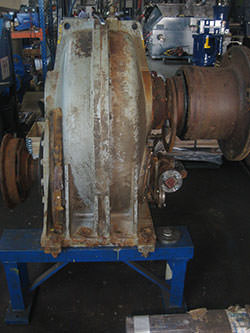

We performed an inspection and repair on a gearbox CONRAD STORK Ra-450-3S.

  • Revision construction and supply comprehensive:
    • Disassembling and cleaning of the gearbox.
    • Inspection of all parts of the gearbox:

    • Gearbox casing:
      • A visual inspection of the gearbox casing for bursts.
      • A visual inspection of the conservation on the inside and the outside.
      • A visual inspection of the holes for damages and dimensions.
      • A visual inspection of the flatness of the devisionplanes.

    • Inside:
      • Controlling of the condition of the serrations of all gearings.
      • Controlling of the bearings for damages.
      • Controlling of contact patterns and back lashes of al gearings.
      • Controlling of the shaftsizes t.p.n. the bearings, oilcatchers and couplings for dimensions and damages.

    • Hydraulics:
      • Disassembling, cleaning and inspection of the piping, the oilpump and other parts.
      • Scavenging of the piping.


    • The conversion operations consists of:
      • Renewing of all seals, bearings and innerrings.
      • Renewing of diverse small items like gaskets and bolts.
      • Re-assembling of the gearbox.
      • Disassembling, cleaning and inspection of the gearbox.
      • Performing of the repair constructions.
      • Deploying of the inspection report.
      • Assembling of the oilpump with the excisting piping.
      • Performing a test run.
      • Degreasing of the gearbox and conserving on the outside in excisting       colour.
      • Preparing the gearbox for shipping.



    contact us

Location - date:

The Netherlands - November 2013
