Inspection and repair of CONRAD STORK 2x 2R630

Scope of work:

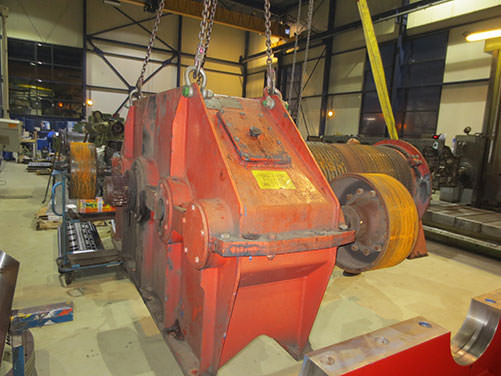

We performed an inspection and repair on a gearbox CONRAD STORK 2x 2R630.

The follow instructions were produced at the gearbox:

• Disassembling and cleaning of the gearbox.
• Inspection of the parts consisting of the following instruction:

• Gearbox casing
• Outside box was in unaccepted condition, we had to conserve in the   excisting colour.
• The Coating of the inside box and conserving in the Alunol.
• The outside box was in unaccepted condition.

• Inside first gear set
• Renewing of the input pinion shaft excess.
• In way of the toothing performed light scuffing.
• Turning of the gearwheel and polishing of the gearings.

• Inside second gear set
• In way of the toothing performed light scuffing.
• Renewing of the pinion shaft excess.
• Renewing of output shaft with spline serrations.

• Miscellaneous
• Seals and bearings were renewed.
• Renewing of one labyrinthcap.
• Renewing of all keys.
• Renewing of cell filler plug.
• Renewing of winding drum.
• Renewing of Bowex-coupling.

• Preparing for test run, deploying of the gearbox, filling with oil and a test run for four hours.
• Conserving of the outside in two coatings.
• Preparing of the gearbox for shipping.
