Inspection and repair of BIERENS KA55-35

Scope of work:

We performed an inspection and repair on a gearbox BIERENS KA55-35.

The conversion operations consists of:

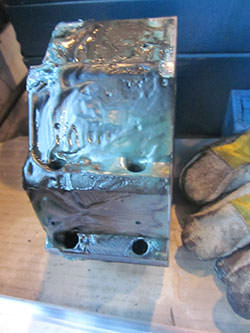

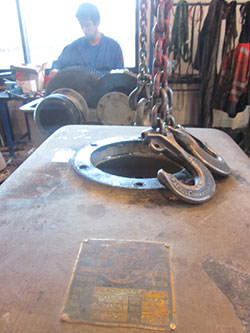

Gearbox casing

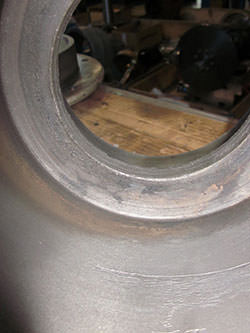

• We had to rebush one drilling.
• Inside box was in poor condition, we had to scrape, to polish, to degrease and to    conserve in the excisting colour.
• Outside box was in poor condition.

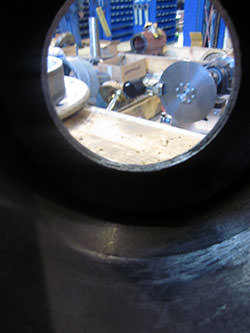

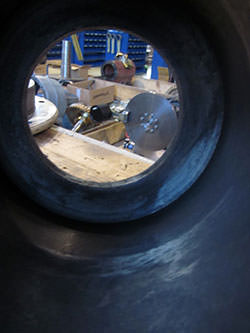

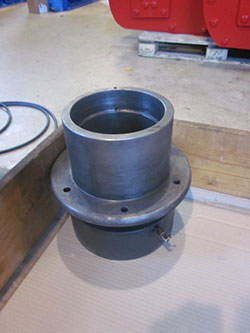

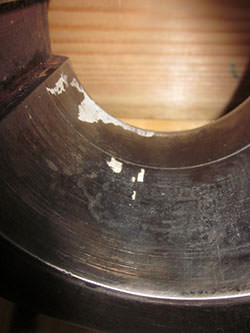

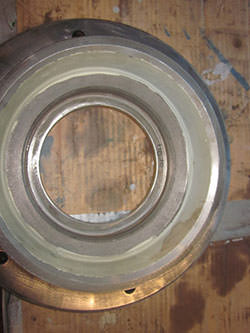

• We had to rebush the input bearing bush.

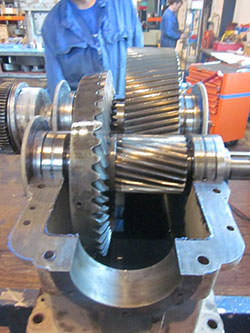

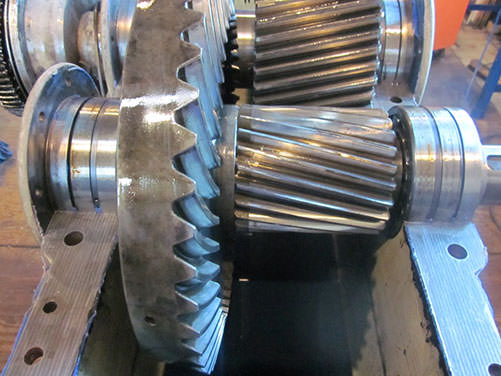

Inside first gear set

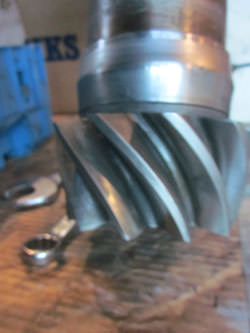

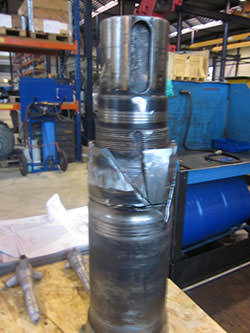

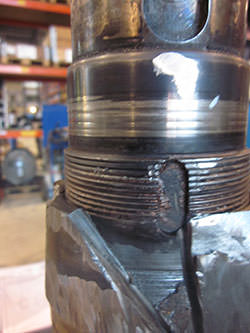

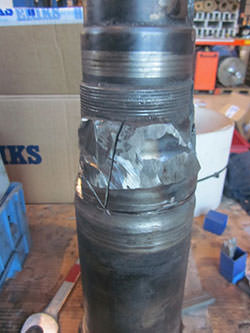

• The input spur bevel pinion shaft has been renewed.
• The hole plug is renewed excess.
• The spur bevel gear is renewed.

Inside second gear set

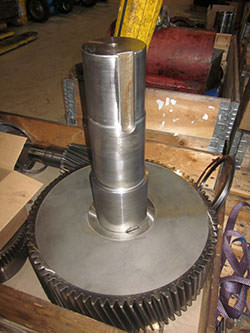

• The gear is renewed excess.

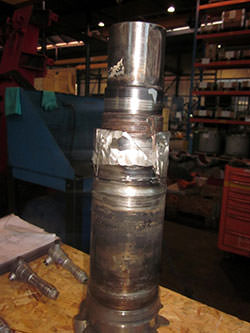

• The output shaft has been renewed excess.

Miscellaneous
• Seals and bearings were renewed.

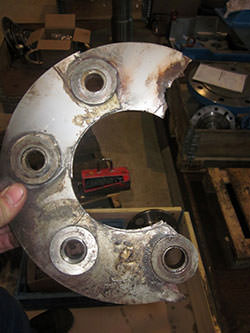

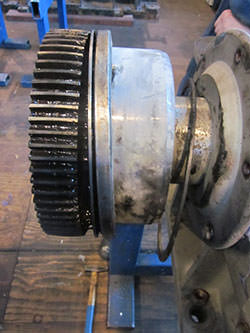

• Input clutch was renewed.
• Vent plug and grease fittings were renewed.

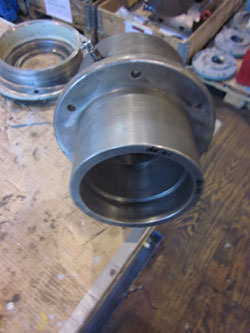

• Degreasing and assembling of new retracting springs and bearing bushes.
