Inspection and repair of an Amarillo S-750 gearbox

Scope of work:

We performed an inspection and revision on gearbox AMARILLO S-750.

Revisionconstruction and supply comprehensive:

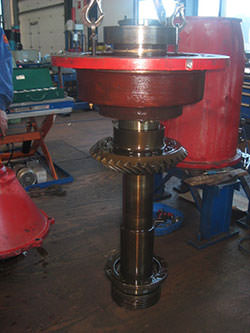

   - Disassembling and cleaning of the gearbox.
   - Inspection of all parts of the gearbox:

• Gearbox casing:
- A visual inspection of the gearbox casing for bursts.
- A visual inspection of the conservation on the inside and the outside.
- A visual inspection of the holes for damages and dimensions.
- A visual inspection of the flatness of the devisionplanes.

• Inside:
- Controlling of the condition of the serrations of all gearings.
- Controlling of the bearings for damages.

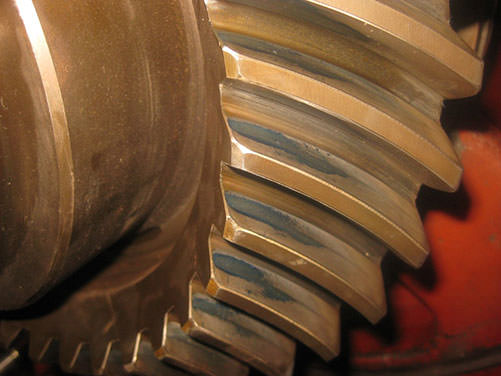

- Controlling of contact patterns and back lashes of al gearings.

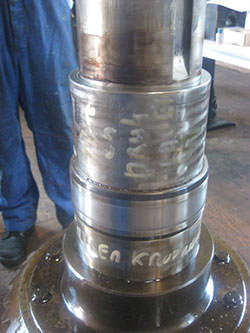

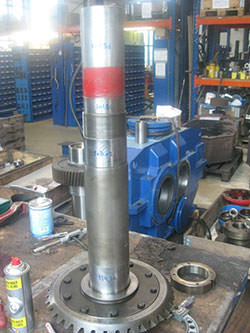

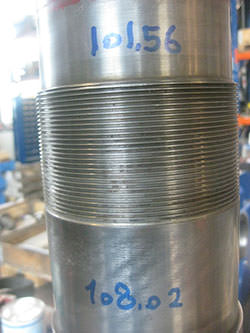

- Controlling of the shaftsizes t.p.n. the bearings, oilcatchers and couplings    for dimensions and damages.
- Controlling of the condition of the oilpump and the inside piping.

• Hydraulics:
- Disassembling, cleaning and inspection of the piping,
the oil-pump and other parts.
- Scavenging of the piping.



• The conversion operations consists of:
- Renewing of all seals, bearings and innerrings.
- Renewing of diverse small items like gaskets and bolts.
- Re-assembling of the gearbox.
- Disassembling, cleaning and inspection of the gearbox.
- Performing of the repair constructions.
- Deploying of the inspection report.
- Assembling of the oilpump with the excisting piping.
- Performing a test run.
- Degreasing of the gearbox after assembling and conserving
on the outside in excisting colour.
- Preparing the gearbox for shipping.
- Transporting the gearbox to our client.
- Re-assembling, aligning and a test run of the gearbox on location.
